Price: $179.00
Product ID C56MBR-UL
Date Added

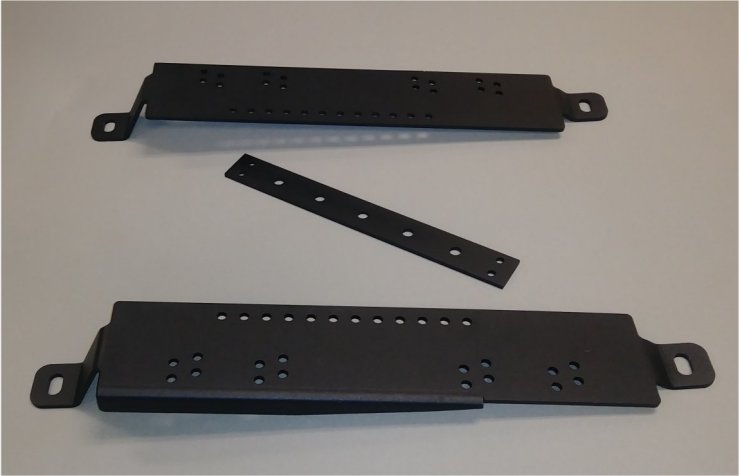

Seat mounting bracket for C5 and C6 Corvettes with ultra low seating position. Made from 3/16" steel and comes with a multi-position bolt in sub belt crossbar. The bracket is designed to sit very low so sometimes harnesses under the carpet may need to be re-routed for the bracket to sit flat and occasionally some carpet or padding may need to be trimmed. You can use washers to shim the back if you prefer if needed but we want to give you the option to get as low as possible.

There are 8 different sets of holes for various slider width spacing and offsets pre-drilled. This bracket is offered with or without integrated belt tabs shown in picture 6. The C5 oem seat belt retractor cover will likely interfere with the lap belt tab on the door side so if you plan to mount a harness in a C5 that has the stock oem belts you would need to mount the lab belt in another location. These brackets are lower than the stock seat track so they WILL NOT clear the YAW sensor on the passenger side of the C5 that sits under the track. You will need a taller bracket than ours.

Additionally, we offer oem seat belt adapters that install under our side mounts and when used with our sliders adjust with the seat (see pictures 4 and 5). The brackets come in a black powder coated finish.

Continental US shipping- $29. In stock orders are normally fulfilled within 2-3 business days.

1 Product Reviews - Average rating 5 / 5 (Show All)
Start here!
- 11/17/2017
If you want to run any kind of seat in a late model Corvette, this should be where you start.

This seat mounting bracket is well designed, nicely finished, and incredibly sturdy, with a number of versatile mounting options depending on seat and installread more
